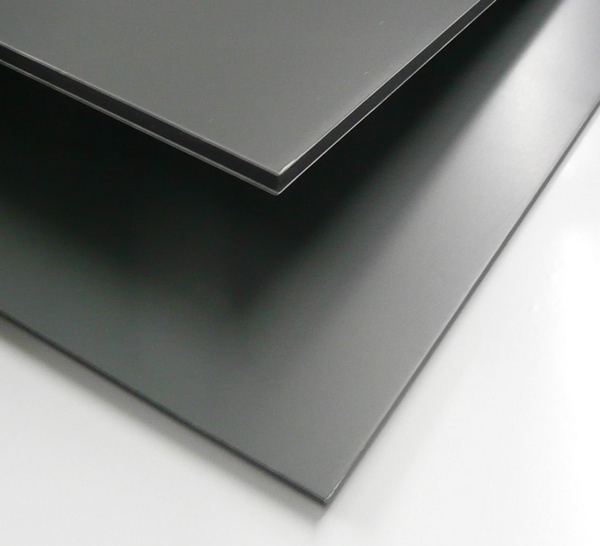

Building Cladding Aluminum Composite Panel

Standard: According to GB/T 17748-2008 standard
Specification:
1) Aluminum skin thickness: 0.50x0.50mm, 0.40x0.40mm, 0.30x0.30mm, 0.21x0.21mm, 0.15x0.15mm.
2) Width: 1220mm (regular), 1570mm (Maximum).
3) Length: 2440mm (regular), and tailored by customers' offers.
4) Normal color: 31 kinds for ACP and 7 kinds for Granite Grain Panel.
5) Standard size: 1220mm (Width) x 2440mm (Length) x 3mm (Thickness), and 1220mm (Width) x 2440 (Length) x 4mm (Thickness);

6)Non-standard sizes and special colors are available depending on customers' offers.

Scopes of Application:
1) Constructional exterior curtain walls.
2) Decorative renovation for storey-added old buildings.
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies.
4) Advertisement board, display platforms and signboards. Billboards, exhibition desks and notice boards.
5) Wallboard and ceilings for tunnels.
6) Raw materials in industrial purpose.
7) Elevator shaft, escalator panels, car and ship bodies. Materials used for vehicle and boat.x0.21mm, 0.15x0.15mm.

Characteristics:

1. High Peeling Strength
The three layers panel are compounded together by use of high-performance molecular binding film under a specific temperature condition, which will achieve the best level for one of the panel's important features -- high peeling strength

2. Superior Weathering Resistance
By use of KYNAR500 based PVDF resin coating, panel enjoys a high level of resistance to acid & alkali, corrosion and ultraviolet radiation. Even if being exposed directly under some extreme environments like hot sunshine or cold snowstorm, the panel's original appearance will not incur any changes

3. Light Weight and Easy for Process
Aluminum composite panel is easy to operate because of its light-weight (about 3.5~5.6kg/m 2 ). The operation processes such as cutting, grooving, folding etc. could be easily done just by several simple woodworking tools, because of its characteristic of easy to process. Also, by its application, the flexibility and plasticity of panels will make it easy and convenient for architectural designers to turn their original design into reality. In this meaning, it saves the cost.

4. Excellent Fire- Resistance Property
Because its core layer is made from anti-toxic polyethylene material, which has a good ability of fire resistance, and two of its skins are both made of aluminum, which is also difficult to burn, thus, Aluminum composite panel is a pretty good fireproof material, and totally meets the demands of fireproofing in national building code.

5. Coating Evenness & Diversified Colors
Due to the application of chemosynthesis treatment and Henkel technology, the adhesive force between paint-coating and panel could be more even. Meanwhile, the choice of color becomes much more diversified, which offers customers more choices to choose the favorite.

6. Easy for Maintenance
Aluminum Composite Panel's ability of self-cleaning has been greatly improved. Even though in some area where the pollution is seriously heavy, with help of some neutral detergent, the panel's surface could be cleaned clear easily.

7. Impact Resistance
The impact resistance and toughness of panel are remarkable. For example, the coating layer will not split even if the panel is being bent to a small angle. What's more, the panel's surface will be guaranteed to keep original for a long time even in an extremely bad weather condition with strong wind and sand.
