Features:

1. High Peeling Strength

2. Superior Weathering Resistance

3. Light Weight and Easy for Process

4. Excellent Fire- Resistance Property

5. Coating Evenness & Diversified Colors

6. Easy for Maintenance

7. Impact Resistance

Scopes of Application:

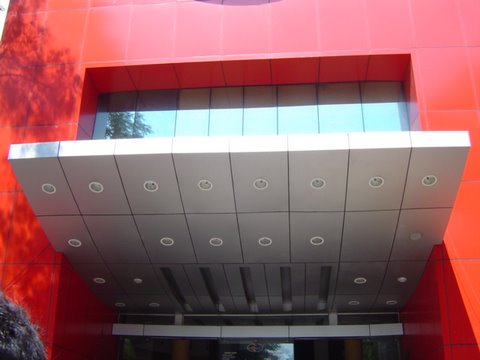

1. Constructional exterior curtain walls.

2. Decorative renovation for storey-added old buildings.

3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies.

4. Advertisement board, display platforms and signboards.

5. Wallboard and ceilings for tunnels.

6. Raw materials in industrial purpose.

7. Materials used for vehicle and boat 0.21x0.21mm, 0.15x0.15mm.

Property	Measurement
Panel Thickness	2mm, 3mm, 4mm, 5mm, 6mm
Aluminium Thickness	0.12mm, 0.15mm,0.18mm,0.21mm,0.30mm,0.40mm,0.50mm
Standard Panel Size	1220*2440mm, 1250*3200mm,1500*3200mm, 1500*6000mm.
Customs Panel Size	Max Width: 1800mm, Max Length: 6000mm
Panel Weight	2.5kg/m2 (2mm/0.12mm), 4.1kg/m2 (3mm/0.30mm) 4.9kg/m2 (4mm/0.30mm), 6.7kg/m2(5mm/0.50mm) 7.5kg/m2 (6mm/0.50mm)
Panel Tolerances
Width	+/ -2mm
Length	+/ -3mm
Thickness	+/ -0.2mm
Diagonals Windage	Less than 3mm
Edge Wave	L ess than 1mm/m
Warpage	L ess than 3mm/m
Property	3 mm	4 mm
Surface Density	3.8~4.1kg/m2	4.9~5.8kg/m2
Bending Strength	68.3 MPa	120 MPa
Bending elastic modulus	2.02 x 10 4 MPa	2.81 x 10 4 MPa
Penetration resistance	5.0Kn	9.8Kn
Shearing Strength	20.4 MPa	29.8 MPa
180o Peal strength	6.3 N/mm	13.7 N/mm
Thermal expansion coefficient	5.7x 10-6 oC-1	7.9 x 10-6 oC-1
Heat distortion temperature	99 oC	105 oC
Coating Properties	3 mm PE	4 mm PVDF
Coating thickness	average 20 µm, min 19µm	average 29µm, min 28µm
Gloss tolerance	2.0 (gloss=25.8)	1.8 (gloss=42.2)
Pencil Hardness	3 H	3 H
Coating flexibility	1T	0T
Impact resistance	50Kg*cm no depainting, no crack
Boiling water resistance	NO CHANGE
Acid resistance
Alkaline resistance
Oil resistance
Solvent resistance
Washing and brushing	>10000 times no change
Aberration ≤ 3.0	1.4
Chalking Grade	Grade 1
Other aging properties	Grade 0
