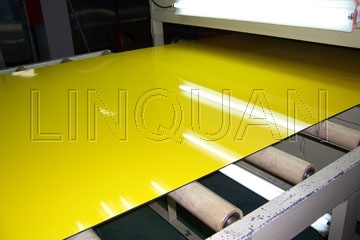

High Glossy Aluminum composite panels

It¡¯s easy to cut, punch,milling and carve; it has great feasibility on processing, easy to be fixed.

Characteristics:

Excellent Coating ,High Peeling Strength,Lightweight, Rigidity,Color Uniformity and Durability,

Excellent Insulation of Thermal Conductivity,Anti-toxicity and Safety.

Application: as signborad, high glossy aluminum composite panels have been widely used in advertisement,Display platforms, fascias and shop fronts etc

Method of processing and construction:

Surface preparation: film sticking, screen printing and flat printing; range of processing temperature: -30 ~ 70 c

Method of processing: blade cutting, edge plane, CNC cutting & molding, drilling, punching, arc rolling or arc pressing, grooving & flanging

Method of construction: bonding, chucking, riveting or bolting by aluminum sections.

ACM Flat Signboard specification

Aluminum Alloy AA1100 series

Aluminum Skin 0.21*0.21mm or 0.30*0.30mm

Overall thickness 2mm, 3mm, 4mm

Width 1220mm, 1250mm, 1500mm

Length 2440mm, 3200mm, 5000mm

Surface finishing Polyester paint normal or high gloss

Color 14 basic colors (accept customized color)

Parameter	Exterior	Interior
Coating Thickness(test)	>=25 um	>=16um
Coating Adhesive(test)	>=1 step
Gloss Tolerance(test)	Limit of error <=10
Pencil Hardness(test)	>=HB
Boiling water resistance(test)	No change
Color Difference test	<=3.0	-----
Acid resistance test	No change
Alkaline resistance test	No change
Grinding resistance test	>=5 um	-----
Bending test	>=100 Mpa	>=60Mpa
180 degree Peel strength 180	>=7N/mm	>=4N/mm
