Description:

1. The resistant of normal Aluminium Composite Panel is high, more than 1.0¡Á109¦¸.

2. The antistatic Aluminium Composite Panel conforms to national electronic industry standard SJ/T11159-1998 <floor Coating And Electrostatic Properties Of The Assembly Floor Test Method>.

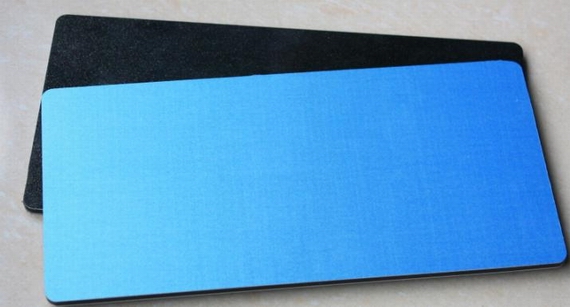

Anti static aluminum composite panel is a special type of Aluminium Composite Panel, which compounded with high-quality Aluminum sheet and non-toxic polyethlene core material by advanced technology.

The resistance on panel surface is extremely slight compared with other types of Aluminum composite panel. Its antistatic paint on surface integrates the features of beauty, antibacterial and environmental Protection. It is dustproof, antipollution and antistatic and can solve all the problems caused by electrostatic.

It is a decorative material for medicine, electron, food, cosmetic and other scientific research units.

Test Result:

No	Item	Technical Index	Test Value	Result
1	Surface resistance	<=1.0 * 10 9 Ω	2.55*10 4 Ω	Passed
2	Volume resistance	1.0*106~1.0*109Ω	5.72*10 6 Ω	Passed
3	T Bend	<= 2 T	<= 2 T	Passed
4	Adhesive force	0 grade	0 grade	Passed
5	Impact	30KG.CM	30KG.CM	Passed
6	Boiling water resistance	2.0H no change	2.0H no change	Passed
7	Hardness test	3H	3H	Passed
8	Color deviation	107	107	Passed

Application Scope
Due to the antistatic character of surface coating, Antistatic Aluminium Composite Panel is suitable for interior decoration that has special requests on dustproof, antipollution, antibacterial and anti static, such as apparatus, instruments, communications room, Computer room and chemical storage sites, etc.

Specification:

Size: 1220mm*2440 mm(standard)

Special width: 1000mm, 1250mm, 1575mm, 1500mm, 2000mm

Maximum length is 6000 mm

Thickness: 3/4/5/6 mm

Aluminum sheet thickness:

0.08*0.08mm,0.12*0.12mm,0.15*0.15mm,0.18*0.18mm,0.21*0.21mm,

0.25*0.25mm,0.30*0.30mm,0.35*0.35mm,0.40*0.40mm,0.50*0.50mm.
