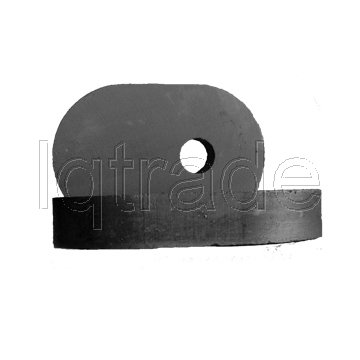

LQ/C40 Slide gate plate

This product adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials,

adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under

high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance

 and good stability etc., mainly used in large and medium-sized ladle.

Al-C Material
Al2O3	C	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
90	3	9	3.00	120

Al-Zr-C Material
Al2O3	C	ZrO2	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
85	3	5	7	3.1	120
