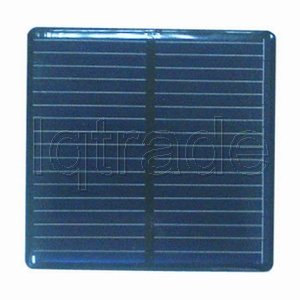

Polycrystalline silicon solar module

Characteristics	Desciption
	10 W Solar Panel
Maximum Power	10 Wp
Power Tolerance	1%～3%
Optimum operating voltage	17.2 V
Optimum operating current	0.58 A
Open ciruit voltage	22 V
Short circuit current	0.66 A
Maximum system voltage	1000V DC
Voltage temperature coefficient	-155±10mV/℃
Current temperature coefficient	+0.06±0.01%/℃
Power temperature coefficient	-0.5±0.05%/℃
TPT brand TPT	ISOVOLTA
Cell type	Polycrystalline silicon
Dimension	359*296*30 mm
Weight	1.2 Kg
Frame Material	Clear anodized aluminium frame
Operating temperature	-40℃～+85℃
Storage temperature	from-40℃~+85℃
Voltage standoff	AC200V  DC3000V
Maximum wind resistance	60m/s
Surface maximum load capacity	200Kg/㎡
Maximum hail load capacity	25mm,80km/h
Efficiency of cell	17%
