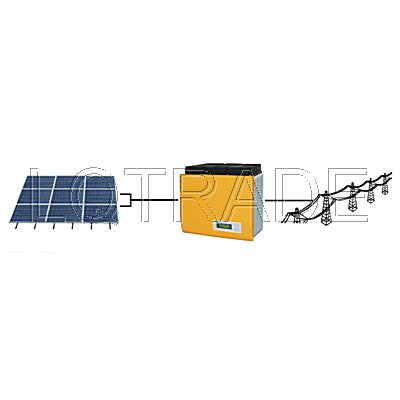

ON GRID HOUSEHOLD SOLAR SYSTEM

On Grid Household Solar System-3000 W
Items	Technical Parameter		Quantiy	Total
solar panel: 185W Size:(mm) 1580*808*40	Max output power of solarsystem	3KW	16 PCS	$5,268.80
	Max power voltage of solar system	272V
	Max power current of solar system	10.88A
	Open circuit voltage of solar system	336V
	Short circuit current of solar system	12.22A
On grid  Solar inverter	Rated Power(KW)	3KW	3KW 1 SET	$1,513
	Allow the max PV square power	3.3KW
	Max open voltage	440v
	MPPT range(VDC)	200¡«400@306
	Rated AC output power	3KW
	Grid voltage range(VAC)	180¡«260/90¡«130
	Rated Grid frequency	50Hz/60Hz
	Power Factor	©ƒ0.99%
	Max. Efficiency	94%
	Euro Efficiency	93.50%
	THD(Iac)	©‚4%
	MPPT precision	99%
	Electromagnetic Compatibility	EN50081/EN50082
	Power Detection	DIN VDE 126
	Equipment	0W
	Waterproof and Dustproof Class	IP20(indoor)/IP65
	Prevent island method	Vac ; Fac
	Cooling method	Wind cooling
	Ambient temperature of using	-20¡æ~+50¡æ
Mounting  Frames	Flat roof			$886.23
	Tilt roof (small tiles)			$664.68
IEC/TUV/ISO/CE; 10 years 90% power, 25 years 85% power, 5 years warranty for solar module
