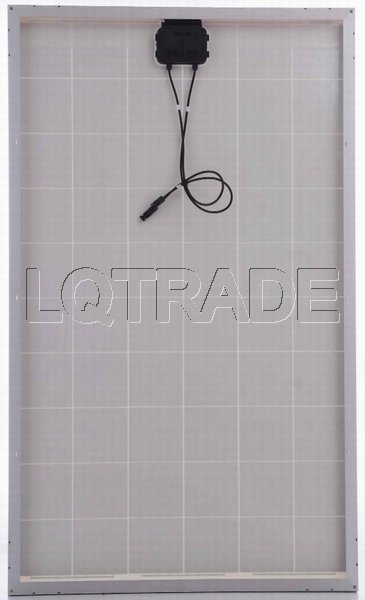

Poly Solar Panel 5W~55W

Dimension of module(mm)	Maximum power at STC(pm)	Open cirxuit voltage(Voc)	Optimum operating voltage(Vmp)	Short circuit current(lsc)	Optimum operating current(lmp)
770*670*30	55W	21.60V	17.20V	3.37A	3.22A
770*670*30	50W	21.20V	17.20V	3.69A	2.93A
530*670*30	45W	22.30V	18.00V	2.75A	2.54A
530*670*30	40W	21.60V	17.20V	2.57A	2.35A
530*670*30	35W	21.60V	17.20V	2.48A	2.05A
410*670*30	30W	21.60V	17.20V	1.93A	1.75A
410*670*30	25W	21.20V	17.20V	1.84A	1.48A
530*350*30	20W	21.60V	17.20V	1.28A	1.17A
400*350*17	15W	21.60V	17.20V	0.97A	0.88A
400*350*17	12W	21.20V	17.20V	0.92A	0.72A
280*350*17	10W	21.60V	17.20V	0.64A	0.61A
280*350*17	8W	21.20V	17.20V	0.61A	0.49A
180*290*17	5W	21.60V	17.20V	0.34A	0.31A
