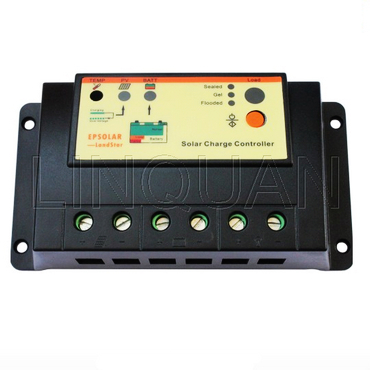

20A 12V 24V LS2024 LandStar Solar Charge Controller Regulators

Solar system controller is specially designed for home
Battery type selection
Load status display
Full electronic protection

1.Solar system controller
2.High efficient Series PWM charging with temperature compensation
3.Compact size.Use MOSFET as electronic switch, without any mechanical switch
5.Digital LED menu, only one key choose the battery type
6.Load status display
7.Gel, Sealed and Flooded battery type option
8.Big terminals and big distance between terminals
9.Electronic protection:Overheating, over charging, over discharging, overload, and short circuit
10.Reverse polarity protection: Any combination of solar module and battery
11.Load work mode:ON/OFF

Model	LS2024
Rated  Current	20A
System Voltage	12/24V auto work
Over Load Protection	1.25 times of rated current for 60 seconds, 1.5 times for 5 seconds
Short Circuit Protection	3.5 times of rated current
Self- consumption	Max.6mA
Working Temperature	-35¡ãC to +55¡ãC industrial
Equalize Charging Voltage	14.6V;x2/24V
Boost Charging Voltage	14.4V;x2/24V
Float Charging Voltage	13.8V;x2/24V
Boost Reconnect Charging Voltage	13.2V;x2/24V
Temperature Compensation	-30mV/¡ãC/12V
Under Voltage Warning Voltage	12.0V;x2/24V
Low Voltage Disconnect Voltage	11.1V;x2/24V
Low Voltage Reconnect Voltage	12.6V;x2/24V
Terminals	10 mm2
Enclosure	IP30
