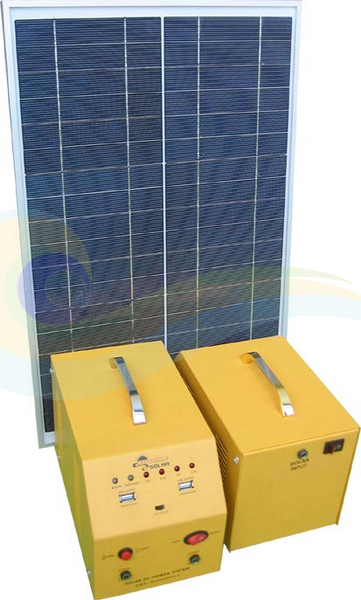

FS-S003D (12V12AH) 20W SOLAR POWER SYSTEM

1. Model: FS-S003D (12V12AH) 20W
2. product specifications:
Size: solar panel: 335 * 425 * 25mm / power box: 220 * 130 * 150-170mm
Weight: solar panels: 1.83kg / power box: 5.22kg
3. Product parameters:
1)Battery: 12v12ah 144w

(1w lighting to support the work of 110 hours of continuous use lamps, cell phone batteries can charge in 38 consecutive, mp3 can continuously charge the battery 76)
2)Solar panels: 20w18v
(For example, under sunshine duration 4.5~4.6 hrs per day, an average of one day's normal capacity is 83w, 1w lamp for continuous 63 hours,

rechargeable cell phone batteries can continuously charge 22 pcs, charge the battery can continuously charge mp3 44 pcs)
output voltage: 5.0v, 12v (adjustable)
maximum current output: usb output 1a, dc output 3a
input interface: a dc interface, input voltage 15-25v.
4. indicator: 3, from left to right are: load indicator, battery indicator light, solar light
5. accessories:
1) usb switch dc output cable * 1;

2) cell phone adapter * 4;

3) led 3w lamps * 1;

4) solar panels and system cable: 5 m * 1;

5) activities dc head * 2 a;

6) 3 m long lamp * 1;

7) manual 1.
6. the product scope:
12v dc lamp, 12v3a within the electrical equipment,, mobile phone, mp3, mp4, gps navigation, pda, etc.
