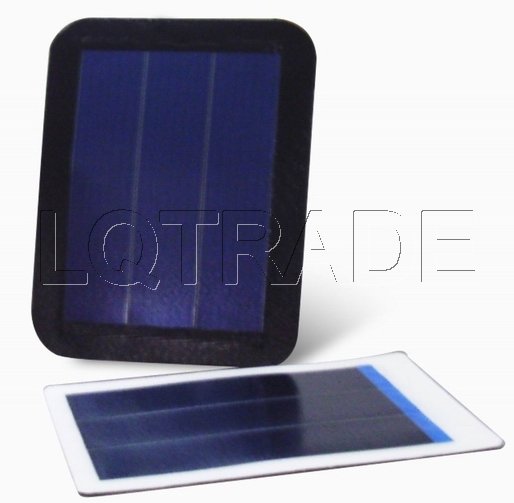

Flexible solar panel---LQP-1.5
Product Description:
1. Amorphous silicon thin film solar with triple-junction deposited on the stainless steel substrate.
2. Polymer laminated, Virtually Unbreakable (No Glass).
3. A blocking diode is included to prevent battery discharge from lowing into the module.
4. Damp-proof and durable.
5. light weight ,anti-impact,easy to use and carry.
6. Environment Temperature for using:-40¡æ - +85¡æ.
Specification:
Item No. |
Electric Characteristic |
Dimensions L*W*D(mm) |
Weight(kg) |
Voc(V) |
Isc(A) |
Vmp(V) |
Imp(A) |
Pmp(W) |
LQP-1.5 |
6 |
0.4 |
4.5 |
0.33 |
1.5 |
208*162*2 |
0.12 |
LQP-3.0 |
12 |
0.4 |
9 |
0.33 |
3 |
284*208*2 |
0.17 |
LQF-5 |
23.8 |
0.4 |
16.5 |
0.33 |
5 |
542*248*15 |
0.6 |
LQF-10 |
23.8 |
0.74 |
16.5 |
0.6 |
10 |
538*426*15 |
0.82 |
Measurements made under the standard test conditions (STC):
Irradiance: 1000W¡¤m-2 Spectrum: AM1.5 Module temperature: 25 ¡æ
Notice:
The flexible solar modules can not be bended excessively and randomly.
During the transportation, installation, application and maintenance, it is forbidden to step and put heavy pressure and scratch on the surface of the module with blunt instrument.
Price: USD 14.23/PCS
MOQ: 5 PCS. |
