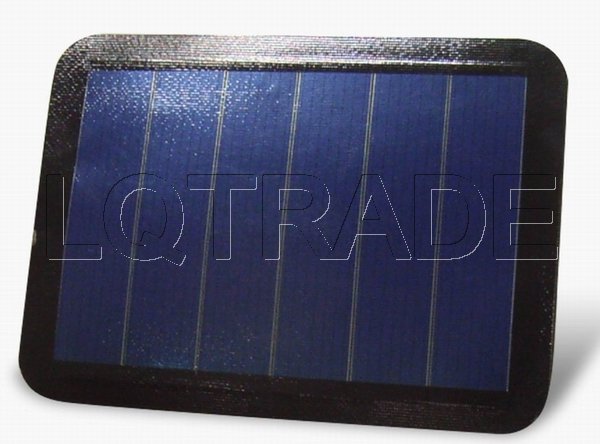

| 3W Flexible Solar Panel
|
Flexible Solar Panel-(LQP-3.0)
| Flexible Solar Panel-1.0W,1.5W, 3W, 5W, 10W , 32W |
| Product Description: |
| 1. Amorphous silicon thin film solar with triple-junction deposited on the stainless steel |
| substrate. Polymer laminated, virtually unbreakable(No Glass). |
|
| 2. Bypass diodes are connected across each cell, allowing the modules to produce |
| power even when partially shaded. |
|
|
|
|
| 3. In LQF-32 a blocking diode is included within each potted junction box to prevent |
| battery discharge into the module. |
|
|
|
|
| 4. Can be bented suitably |
|
|
|
|
|
| 5. Damp-proof and durable |
|
|
|
|
|
| 6. Light weight, easy to install and transport |
|
|
|
| 7. Environment Temperature for using: -40≧-+85≧ |
|
|
| Specification: |
| Item No. |
Electric Characteristic |
Dimensions
L*W*D(mm) |
Weight(kg) |
| Voc(V) |
Isc(A) |
Vmp(V) |
Imp(A) |
Pm(W) |
| LQP-1.0 |
4 |
0.4 |
3 |
0.33 |
1 |
208*110*1.23 |
0.06 |
| LQP-1.5 |
6 |
0.4 |
4.5 |
0.33 |
1.5 |
208*162*2 |
0.12 |
| LQP-3.0 |
12 |
0.4 |
9 |
0.33 |
3 |
284*208*2 |
0.17 |
| LQF-5 |
23.8 |
0.4 |
16.5 |
0.33 |
5 |
542*248*15 |
0.6 |
| LQF-10 |
23.8 |
0.74 |
16.5 |
0.6 |
10 |
538*426*15 |
0.82 |
| LQF-32 |
23.8 |
2.4 |
16.5 |
1.94 |
32 |
1416*426*15 |
2.14 |
Guarantee and warranty:
1. Within 90 days from the date of purchasing, due to the reason of delect in raw material or leak in workmanship,
cutomers can return the products for free repairing; in case a serious problem
has occured, the costomers can request the replacing of module.
2. LQTRADE assure the life time of LQ series at least 3 years, the maximum output power is no lower than 90%. |
|
|
 |
| |
|
|
 |
|
 |
|
|
