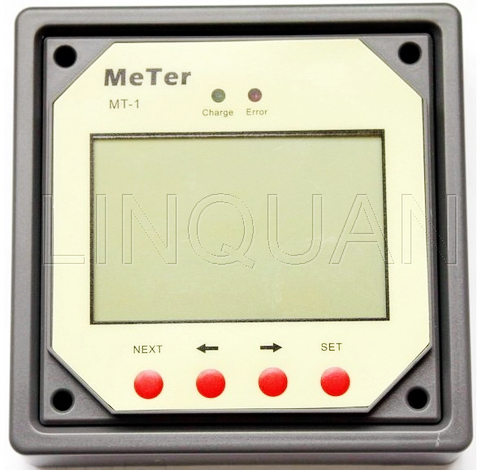

Remote Meter Display MT-1 LCD Display charge and discharge parameter

Detailed Product Description

1.For duo-battery charging solar controller,

2.For RVs,Caravans,and boats

3.Only used with EPIPDB-COM series

METER for duo-battery charging solar controller,

For RVs,Caravans,and boats

----------EPIPDB-COM series

Wall mounting board, can be mounted in or on the wall. With 10 meter cable

Specifications:

Rated voltage: 12V, min voltage(suggest): 8.0V.

Strong backlight on: <23mA,

Low backlight on: <20mA

Backlight and LED indicator off: <17mA

Operation temperature: -40C ~ +60 celsius degree

LCD operation temperature: -10C ~ +40 degree

Humidity: 0-100%

Communication cable: RJ45(8PIN), 10 meter.

Package including
1. 1x LCD meter
2. 1x 10meters cable
3. 1x Users` manual

Features
Remote digital display for the 10Amp/20Amp Duo- Battery Solar Charge Controller. Ideal for monitoring and display current solar system status.

Displays both solar voltage and battery voltage as well as charging current and load current.

Shows Amp-Hour and Watt-Hour charge accumulation as well as percentage the batteries are charged.
