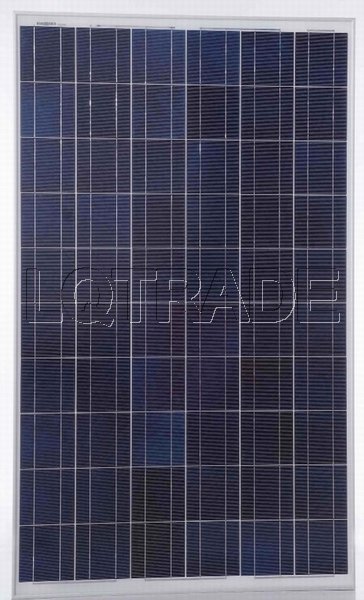

POLY SOLAR MODULE  100W ~ 140 W(156MM*156MM solar cells)
Specifications
Model	Maximum power at STC(pm)	Open cirxuit voltage(Voc)	Optimum operating voltage(Vmp)	Short circuit current(lsc)	Optimum operating current(lmp)
LQ100-36P	100W	21.20V	17.10V	7.39A	5.85A
LQ110-36P	110W	21.40V	17.10V	7.46A	6.43A
LQ120-36P	120W	21.60V	17.20V	7.73A	6.98A
LQ130-36P	130W	21.90V	17.60V	8.12A	7.39A
LQ140-36P	140W	22.30V	18.30V	8.46A	7.65A
Parameter
Cell		polycrystalline silicon solar cells   156MM*156MM
No. of cells and connection		36(4*9)
Dimension of module(mm)	¡¡	1480*670*40
Weight£¨kg£©		12
Operating temperature(¡ãC)		-40 to +85
Maximum system voltage		1000 V DC
Temperature and coefficients
NOCT		45¡ãC¡À2¡ãC
Current temperature coefficient		£¥0.06¡À0.01/k
Voltage temperature coefficient		-(155¡À10) mv/k
Limited Warranty
5 -year		products workmanship warranty .
90%		output power within 10 years after delivery.
80%		output power within 25 years after delivery
FOB QUOTATION
USD 2.10/Watt ~ USD 2.30/Watt FOB QINGDAO/TIANJIN
MOQ: 1 KW.
Package: Carton, pallet.
Certification: CE, ISO, TUV, IEC.
Delivery time: Within 10 ~ 25 days.
