PRODUCT SPECIFICATONS

1.SIZE- solar panel:265*350*18MM / system box 220*110*150-170MM

2.WEIGHT: solar panel: 1.1KG / system box: 3.7KG

PRODUCT PARAMETER

Battery: 12V7AH  84W

Solar panel: 10W18V

Output voltage: 3.3V, 5.0V,8.4V,12V(Adjustable)

Input voltage: 15-25V
Output current: 1A for USB; 3A for DC

Input interface: DC interface X1

Output interface : 4 (2 for USB, 2 for DC)

For USB,Output voltage :3.3V/5V/8.4V (Adjustable)  output current:1A

For DC, Output voltage:12V  output current: 3A

ACCESSORIES:
1) 1 wire from usb port to DC port

2) 4 changers for mobile phone

3) 2 LED lamps

4) 1 lamp_socket

5) 5m wire for system

6) 2 DC changers

7) 1 lamp_socket with 3m wire

8) 1 User¨s Manual

PRODUCT SCOPE:

DC lamp (12V) ,camera, mobile phone ,MP3,MP4,MP5,GPS,PDA,video and so on.

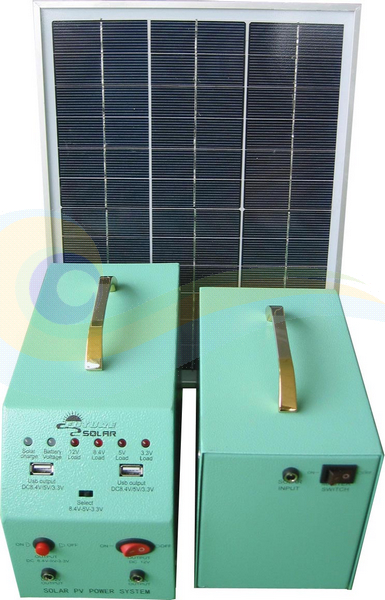

PRODUCT PICTURE

1. Solar panel

2. System box

3. MASTER SWITCH(Charge and use of this switch must be opened before)

4. DC Input interface for solar panel

5. output interface

6. Switch for 12V output.

7. Switch for USB output.

8. Slide switch for choosing 8.4V,5V or 3.3V to be output from USB interface

9. output interface for USB

10. Working lights for solar panel (red for charging pattern,green for finishing charging.

11. Working lights for battery (green is not empty,red is empty)

12. Loading light for 12V (red for working)

13. Loading light for 8.4V (red for working)

14. Loading light for 5V (red for working)

15. Loading light for 3.3V (red for working)
