INTRODUCTION

MODEL: FS-S001D(12V4.5AH5W)

PRODUCT SPECIFICATONS

1.SIZE: solar panel:180*275*18MM / system box 170*110*130MM MM

2.WEIGHT: solar panel: 0.76KG  / system box: 3.05KG

PRODUCT PARAMETER

Battery: 12V4.5AH  54W

Solar panel: 5W18V

Output voltage: 3.3V, 5.0V, 8.4V, 12V(Adjustable)

Input voltage:15-25V

Output current: 1A for USB; 3A for DC

Input interface: DC interface X1

Output interface: 4 (2 for USB, 2 for DC)

For USB,Output voltage :3.3V/5V/8.4V (Adjustable)  output current:1A

For DC, Output voltage:12V  output current: 3A

ACCESSORIES:

1) 1 wire from usb port to DC port

2) 4 changers for mobile phone

3) 2 LED lamps

4) 1 lamp_socket

5) 5m wire for system

6) 1 DC changers

7) 1 lamp_socket with 3m wire

8) 1 description

PRODUCT Application:

DC lamp (12V) ,camera, mobile phone ,MP3,MP4,MP5,GPS,PDA,video and so on.

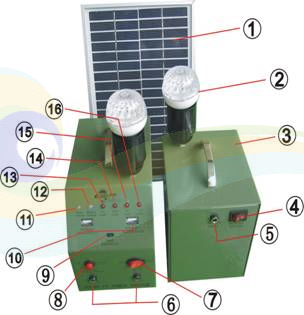

PRODUCT PICTURE

1.Solar panel

2.1W LED LAMP

3.System box

4.MASTER SWITCH(before Charge or use, this switch must be opened)

5.DC interface for solar panel

6.DC output interface

7.Switch for 12V output.

8.Switch for USB output.

9.Slide switch for choosing 8.4V,5V or 3.3V to be output from USB interface

10.output interface for USB

11.Working lights for solar panel (red for charging pattern,green or finishing charging.

12.Working lights for battery (green is full,red is empty)

13.Loading light for 12V (red for working)

14.Loading light for 8.4V (red for working)

15.Loading light for 5V (red for working)
