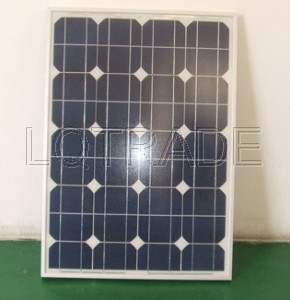

Mono Solar Panel Electrical Characteristics 75W 80W 85W 90W 95W

Composition:
1. 72pcs of high efficiency solar cell
2. High transmission rate and low iron temperd glass
3. Anti-aging EVA
4. high frame resistant TPT
5. Laminate and anodized aluminum alloy
Advantages: high efficiency,long life span, easy installation, high wind and hail impact resistance etc.

Mono Solar Panel Electrical Characteristics 75W 80W 85W 90W 95W
Item No.	LQ75-72M	LQ80-72M	LQ85-72M	LQ90-72M	LQ95-72M
Peak Power(WP)	75W	80W	85W	90W	95W
Voltage at Pmax(VMP)	18.0V	18.0V	18.0V	18.0V	18.0V
Current at Pmax(IMP)	4.16A	4.44A	4.72A	5.00A	5.27A
Open circuit voltage(VOC)	21.6V	21.6V	21.6V	21.6V	21.6V
Short circuit current(ISC)	4.45A	4.75A	5.05A	5.35A	5.63A
Weight(KG)	7.3	7.3	7.5	7.5	7.8
Efficiency(%)	14.5	15	15.92	17	17
Max system voltage	1000V DC	1000V DC	1000V DC	1000V DC	1000V DC
Dimension	1180*540*35mm
Cell type	125*125mm, 6*12 array
Testing condition: Illumination 1000W/m2,Module temperature 25¡æ,AM=1.5
Temperation coefficients:
Noct:	48¡æ¡À2¡æ
Current temperature coefficient	0.06¡À0.01%/K
Voltage temperature coefficient	-(78¡À10)MV/K
Power temperature coefficient	-(0.5¡À0.05)%/K
Mechanical Characteristics:
Type of output terminal	Junction box
Cable	LAPP(4.0mm2)
Lengths	900mm
Connection	type lv
5 -year	Products workmanship warranty
90%	output power within 10 years
80%	output power within 25 years
Certification	IEC61215, IEC61730 & CE
Applications:
Grid tied/off grid power system		Electric fencers,land-based navigation aids
Private residences		Water pumping
Electronic product.		Rural electrification
Cathodic protection		Telecommunication-Road lights
Remote telemetry		instrumentation systems, security sensor
Traffice signaling		Camping/ RV/ Caravans
