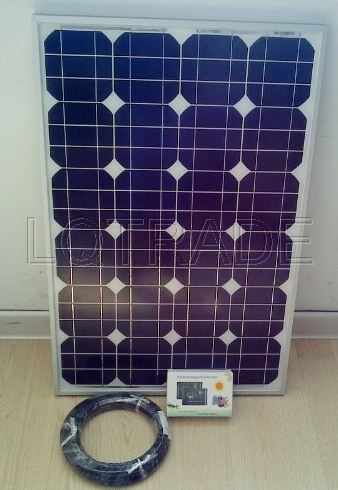

65W 70W Monocrystalline Silicon Photovoltaic Solar Module

Composition:
1. 36pcs of high efficiency solar cell
2. High transmission rate and low iron temperd glass
3. Anti-aging EVA
4. high frame resistant TPT
5. Laminate and anodized aluminum alloy
Advantages: high efficiency,long life span, easy installation, high wind and hail impact resistance etc.

Mono Solar Panel Electrical Characteristics 65W 70W
Item No.	LQ65-36M	LQ70-36M
Peak Power(WP)	65W	70W
Voltage at Pmax(VMP)	17 V	17 V
Current at Pmax(IMP)	3.82 A	4.12 A
Open circuit voltage(VOC)	21.1 V	21.2V
Short circuit current(ISC)	4.27A	4.59A
Weight(KG)	5.5KG	5.5KG
Efficiency(%)	12.20%	13.31%
Max system voltage	700VDC
Dimension	1195¡Á550¡Á30mm
Cell type	125*125mm
Testing condition: Illumination 1000W/m2,Module temperature 25¡æ,AM=1.5
Temperation coefficients:
Noct:	48¡æ¡À2¡æ
Current temperature coefficient	0.06¡À0.01%/K
Voltage temperature coefficient	-(78¡À10)MV/K
Power temperature coefficient	-(0.5¡À0.05)%/K
Mechanical Characteristics:
Type of output terminal	Junction box
Cable	LAPP(4.0mm2)
Lengths	900mm
Connection	type lv
5 -year	Products workmanship warranty
90%	output power within 10 years
80%	output power within 25 years
Certification	IEC61215, IEC61730 & CE
Applications:
Grid tied/off grid power system	Electric fencers,land-based navigation aids
Private residences	Water pumping
Electronic product.	Rural electrification
Cathodic protection	Telecommunication-Road lights
Remote telemetry	Instrumentation systems, security sensor
Traffice signaling	Camping/ RV/ Caravans
