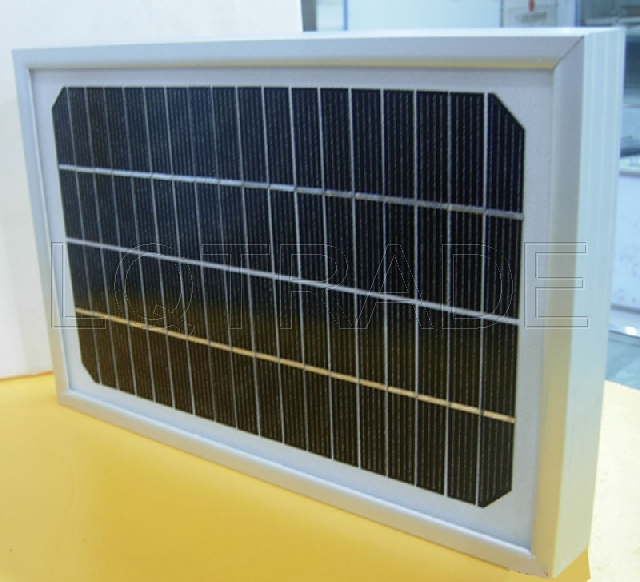

120W~140W Monocrystalline Silicon Solar Modules

Composition:
1. 40pcs of high efficiency solar cell
2. High transmission rate and low iron temperd glass
3. Anti-aging EVA
4. high frame resistant TPT
5. Laminate and anodized aluminum alloy
Advantages: high efficiency,long life span, easy installation, high wind and hail impact resistance etc.

Mono Solar Panel Electrical Characteristics 120W 125W 130W 135W 140W
Item No.	LQ120-40M	LQ125-40M	LQ130-40M	LQ135-40M	LQ140-40M
Peak Power(WP)	120W	125W	130W	135W	140W
Voltage at Pmax(VMP)	17.4V	17.4V	17.4V	17.4V	17.4V
Current at Pmax(IMP)	6.89A	7.18A	4.47A	7.76A	8.05
Open circuit voltage(VOC)	21.6V	21.6V	21.6V	21.6V	21.6V
Short circuit current(ISC)	7.58A	7.90A	8.22A	8.53A	8.85A
Weight(KG)	13.5	13.5	14	14	14
Efficiency(%)	14.5	15	15.92	16	16
Max system voltage	1000V DC	1000V DC	1000V DC	1000V DC	1000V DC
Dimension	1480*670*30mm(58.3"*26.4"*1.2")
Cell type	156*156mm
Testing condition: Illumination 1000W/m2,Module temperature 25¡æ,AM=1.5
Temperation coefficients:
Noct:	48¡æ¡À2¡æ
Current temperature coefficient	0.06¡À0.01%/K
Voltage temperature coefficient	-(78¡À10)MV/K
Power temperature coefficient	-(0.5¡À0.05)%/K
Mechanical Characteristics:
Type of output terminal	Junction box
Cable	LAPP(4.0mm2)
Lengths	900mm
Connection	type lv
5 -year	Products workmanship warranty
90%	output power within 10 years
80%	output power within 25 years
Certification	IEC61215, IEC61730 & CE
Applications:
Grid tied/off grid power system		Electric fencers,land-based navigation aids
Private residences		Water pumping
Electronic product.		Rural electrification
Cathodic protection		Telecommunication-Road lights
Remote telemetry		Instrumentation systems, security sensor
Traffice signaling		Camping/ RV/ Caravans
