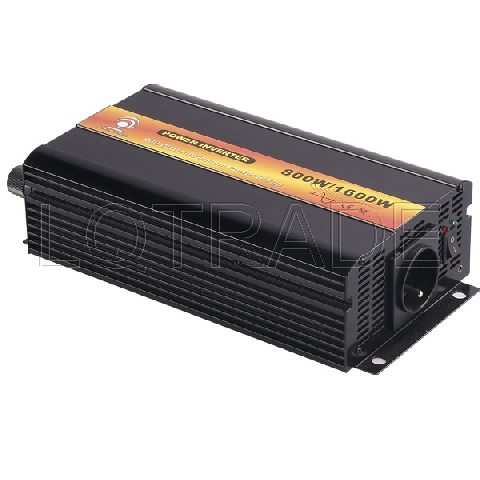

800W Series Pure Sine Wave DC to AC Power Inverter
Model No.		IN800-112A1	IN800-124A1	IN800-148A1	IN800-112B2	IN800-124B2	IN800-148B2
Output	AC voltage	110V¡À10%			220V¡À10%
	Rated power	800W			800W
	Peak power	1600W			1600W
	Waveform (THD)	Pure sine wave (<3%)			Pure sine wave (<3%)
	Frequency	60Hz ¡À0.3%			50Hz ¡À0.3%
Input	NO load current draw	<0.8A	<0.8A	<0.8A	<0.8A	<0.8A	<0.8A
	DC voltage	12V	24V	48V	12V	24V	48V
	Voltage range	10.8~15VDC	21~30VDC	41~56VDC	10.8~15VDC	21~30VDC	41~56VDC
	Efficiency	> 90%			> 90%
	DC connector	Cables With Clips or Car Adaptor			Cables With Clips or Car Adaptor
Protection	Low voltage alarm	10.2¡«10.8V	20.4V	40.8V	10.2¡«10.8V	20.4V	40.8V
	Low voltage shut down	DC 9.5V	DC 19.5V	DC 38.5V	DC 9.5V	DC 19.5V	DC 38.5V
	Over load	Shut Off Output			Shut Off Output
	Over voltage shut down	DC 15.5V	DC 30.5V	DC 61.2V	DC 15.5V	DC 30.5V	DC 61.2V
	Over thermal	Shut Off Output Automatically			Shut Off Output Automatically
	Fuses	Short Circuit			Short Circuit
Environment	Working temperature	-10~+50 celsius degree			-10~+50 celsius degree
	Working humidity	10%~90%RH			10%~90%RH
	Storage temperature	-20¡ãc ~ +50¡ãc			-20¡ãc ~ +50¡ãc
Package	Machine Size(mm)	262*139*72
	Packing Size(mm)	368*180*120
	Net Weight	2.4kg/unit
	Gross Weight	2.7kg/unit
	Packing Mode	Carton
Other	Start	Soft Start
	Cooling Ways	Cooling Fan

800W Series Pure Sine Wave DC to AC Power Inverter
Model No.		IN800-112A1	IN800-124A1	IN800-148A1	IN800-112B2	IN800-124B2	IN800-148B2
Output	AC voltage	110V¡À10%			220V¡À10%
	Rated power	800W			800W
	Peak power	1600W			1600W
	Waveform (THD)	Pure sine wave (<3%)			Pure sine wave (<3%)
	Frequency	60Hz ¡À0.3%			50Hz ¡À0.3%
Input	NO load current draw	<0.8A	<0.8A	<0.8A	<0.8A	<0.8A	<0.8A
	DC voltage	12V	24V	48V	12V	24V	48V
	Voltage range	10.8~15VDC	21~30VDC	41~56VDC	10.8~15VDC	21~30VDC	41~56VDC
	Efficiency	> 90%			> 90%
	DC connector	Cables With Clips or Car Adaptor			Cables With Clips or Car Adaptor
Protection	Low voltage alarm	10.2¡«10.8V	20.4V	40.8V	10.2¡«10.8V	20.4V	40.8V
	Low voltage shut down	DC 9.5V	DC 19.5V	DC 38.5V	DC 9.5V	DC 19.5V	DC 38.5V
	Over load	Shut Off Output			Shut Off Output
	Over voltage shut down	DC 15.5V	DC 30.5V	DC 61.2V	DC 15.5V	DC 30.5V	DC 61.2V
	Over thermal	Shut Off Output Automatically			Shut Off Output Automatically
	Fuses	Short Circuit			Short Circuit
Environment	Working temperature	-10~+50 celsius degree			-10~+50 celsius degree
	Working humidity	10%~90%RH			10%~90%RH
	Storage temperature	-20¡ãc ~ +50¡ãc			-20¡ãc ~ +50¡ãc
Package	Machine Size(mm)	262*139*72
	Packing Size(mm)	368*180*120
	Net Weight	2.4kg/unit
	Gross Weight	2.7kg/unit
	Packing Mode	Carton
Other	Start	Soft Start
	Cooling Ways	Cooling Fan

800W Series Pure Sine Wave DC to AC Power Inverter
Model No.		IN800-112A1	IN800-124A1	IN800-148A1	IN800-112B2	IN800-124B2	IN800-148B2
Output	AC voltage	110V¡À10%			220V¡À10%
	Rated power	800W			800W
	Peak power	1600W			1600W
	Waveform (THD)	Pure sine wave (<3%)			Pure sine wave (<3%)
	Frequency	60Hz ¡À0.3%			50Hz ¡À0.3%
Input	NO load current draw	<0.8A	<0.8A	<0.8A	<0.8A	<0.8A	<0.8A
	DC voltage	12V	24V	48V	12V	24V	48V
	Voltage range	10.8~15VDC	21~30VDC	41~56VDC	10.8~15VDC	21~30VDC	41~56VDC
	Efficiency	> 90%			> 90%
	DC connector	Cables With Clips or Car Adaptor			Cables With Clips or Car Adaptor
Protection	Low voltage alarm	10.2¡«10.8V	20.4V	40.8V	10.2¡«10.8V	20.4V	40.8V
	Low voltage shut down	DC 9.5V	DC 19.5V	DC 38.5V	DC 9.5V	DC 19.5V	DC 38.5V
	Over load	Shut Off Output			Shut Off Output
	Over voltage shut down	DC 15.5V	DC 30.5V	DC 61.2V	DC 15.5V	DC 30.5V	DC 61.2V
	Over thermal	Shut Off Output Automatically			Shut Off Output Automatically
	Fuses	Short Circuit			Short Circuit
Environment	Working temperature	-10~+50 celsius degree			-10~+50 celsius degree
	Working humidity	10%~90%RH			10%~90%RH
	Storage temperature	-20¡ãc ~ +50¡ãc			-20¡ãc ~ +50¡ãc
Package	Machine Size(mm)	262*139*72
	Packing Size(mm)	368*180*120
	Net Weight	2.4kg/unit
	Gross Weight	2.7kg/unit
	Packing Mode	Carton
Other	Start	Soft Start
	Cooling Ways	Cooling Fan

Features:
Pure sine wave output (THD<3%)
Power ON-OFF switch
Input voltage range:-15% ~ +25%
Output voltage regulation:¡À10%
Thermo control cooling fan
Two-color indicators display power and fault status
Protections:short circuit, overload, over temperature, low
battery voltage, over battery voltage, lack-voltage alarm.
Topology: Microprocessor
Approvals: RoHS / CE / EMC / LVD
1 year warranty
