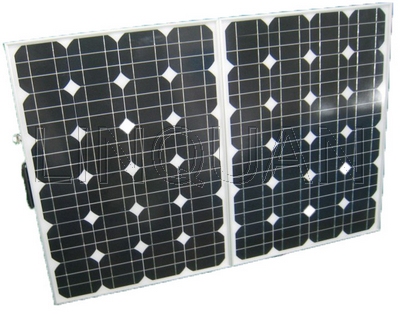

FOLDABLE SOLAR PANEL -MONOCRYSTALLINE SERIES
Portable Folding Solar Panel
Type	Folded Size	Weight	Specification					Type of cell
			Max-Power	Max-Power Voltage	Max-Power Current	Open-Circuit Voltage	Short-circuit Current
Module	mm	Kg	W	V	A	V	A
LQMF-200W	1196*534*70	18	200	19	10.53	22.8	11.37	High quality Mono Solar cell Efficiency: >=16.8%
LQMF-190W			190	18.72	10.15	22.46	10.96
LQMF-180W			180	18.72	9.62	22.46	10.38
LQMF-170W			170	18	9.44	21.6	10.2
LQMF-160W			160	18	8.89	21.6	9.6
LQMF-150W			150	18	8.33	21.6	9
LQMF-120W	810*534*70	14	120	18	6.67	21.6	7.2
LQMF-100W			100	18	5.56	21.6	6
LQMF-90W	645*540*70	11	90	18	5	21.6	5.4
LQMF-80W			80	18	4.44	21.6	4.8
LQMF-60W	540*450*70	9	60	18	3.33	21.6	3.6
LQMF-56W			56	18	3.11	21.6	3.36
LQMF-50W			50	18	2.78	21.6	3
LQMF-40W	405*423*70	7	40	18	2.22	21.6	2.4
LQMF-30W	420*281*70	6	30	18	1.67	21.6	1.8
LQMF-24W	341*280*36	4	24	18	1.33	21.6	1.44
LQMF-20W			20	18	1.11	21.6	1.2
LQMF-16W	285*280*36	3	16	18	0.89	21.6	0.96
LQMF-12W	204*280*36	2	12	18	0.67	21.6	0.72
LQMF-10W			10	18	0.56	21.6	0.6
Accessories Available:
Controller regulator, Cable 2.5mm2 (5M length), Alligator Clip, Supporting Leg.
Application:
1)Provide power for lighting and entertainment in remote area ,such as lights,fans,laptop,refrigerators and TV etc.
2)Used in emergency,such as family use,back-up power for office.
3)for camping,travel,adventrue,exploration,road builting and other fields of ourdoors perfromance And charge for 12V or 24V battery .
