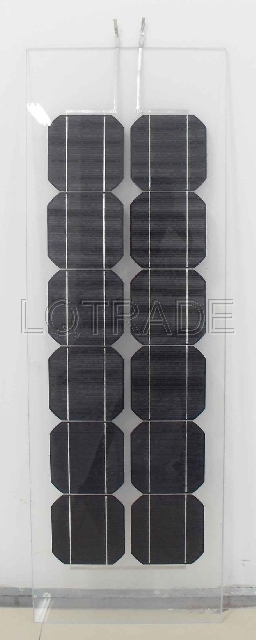

BIPV Double Glass Solar Panel
Features:
1. Innovative photovoltaic glass products;
2. Perfect integration of generating equipment and ceilings;
3. Adopting crystalline silicon solar cells, laminated by two sheets of glass with space left between
solar cells to allow sunshine going through;
4. Standardized and low cost glass solar panel, suitable for photovoltaic ceilings and curtain walls;
5. An advanced solar system integrating with high efficiency solar panels, excellent performance.

Electrical Characeteristics:
Type	DG60-24M	DG70-36M		DG75-36M	DG80-36M
Rated maximum power (Wp)	60	70		75	80
Maximum power voltage (Vmp)	12	17		17.35	17.8
Maximum power current (Imp)	5	4.12		4.33	4.5
Open circuit voltage (Voc)	14.4	21.6		21.6	21.8
Short circuit current (Isc)	5.4	4.92		5.03	5.1
Cell efficiency	17.00%	13.25%		14.25%	15.00%
Max system voltage (VDC)	750VDC	750VDC		750VDC	750VDC
Temperature range	-40~85 Celsius degree
Power tolerance	¡À5%
Standard test conditions	STC:AM=1.5,1000W/m2,cells temperature 25¡æ
Mechnical Characteristics
Solar cell	Mono(4*6)	Mono(4*9)		Mono(4*9)	Mono(4*9)
Size of module(mm)	1050*720*8	1300*750*9.23mm
Weight per piece(kg)	14.5	14		14	14
Double Glass	3.2 mm tempered glass
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Junction Box Type	Edge(IP65 rated), 1000 VDC,TUV certified; 2 pcs Schottky By-pass diodes
Connectors	MC Plug Type IV connectors
Cables	4.0 mm2, 900m
Encapsulation	Both sides Low iron tempered glass with light transmission above 91%, laminated with fast cure EVA
Temperature coefficients
Nominal Opening Cell Temperature			45¡À2¡æ
Temperature coefficients of Pm(%)			-0.52%/K
Temperature coefficients of Im(%)			0.03%/K
Temperature coefficients of Vm(%)			-0.37%/K
