Features:

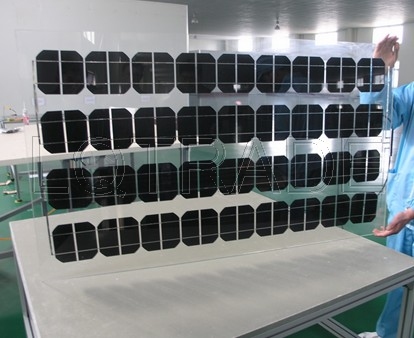

1. Innovative photovoltaic glass products;
2. Perfect integration of generating equipment and ceilings;
3. Adopting crystalline silicon solar cells, laminated by two sheets of glass with space left between
solar cells to allow sunshine going through;
4. Standardized and low cost glass solar panel, suitable for photovoltaic ceilings and curtain walls;
5. An advanced solar system integrating with high efficiency solar panels, excellent performance.
|
Electrical Characeteristics: |
|
Type |
DG85-36M |
DG90-36M |
DG120-48M |
DG150-60M |
|
Rated maximum power (Wp) |
85 |
90 |
120 |
150 |
|
Maximum power voltage (Vmp) |
18.07 |
18.36 |
24 |
30 |
|
Maximum power current (Imp) |
4.71 |
4.91 |
5 |
5 |
|
Open circuit voltage (Voc) |
22.03 |
22.17 |
28.8 |
36 |
|
Short circuit current (Isc) |
5.2 |
5.28 |
5.4 |
5.4 |
|
Cell efficiency |
16.00% |
16.75% |
17.00% |
17.00% |
|
Max system voltage (VDC) |
750VDC |
750VDC |
1000VDC |
1000VDC |
|
Temperature range |
-40~85 Celsius degree |
|
Power tolerance |
¡À5% |
|
Standard test conditions |
STC:AM=1.5,1000W/m2,cells temperature 25¡æ |
|
Mechanical Characteristics |
|
Solar cell |
Mono(4*9) |
Mono(4*9) |
Mono(6*8) |
Mono(6*10) |
|
Size of module(mm) |
1300*750*9.23 |
1300*750*9.23 |
1380*1050*8 |
1510*1050*8 |
|
Weight per piece(kg) |
14 |
14 |
28 |
31.5 |
|
Double Glass |
3.2 mm tempered glass |
|
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
|
Allowable Hail Load |
steel ball fall down from 1m height |
|
Junction Box Type |
Edge(IP65 rated), 1000 VDC,TUV certified; 2 pcs Schottky By-pass diodes |
|
Connectors |
MC Plug Type IV connectors |
|
Cables |
4.0 mm2, 900m |
|
Encapsulation |
Both sides Low iron tempered glass with light transmission above 91%, laminated with fast cure EVA |
|
Temperature coefficients |
|
Nominal Opening Cell Temperature |
45¡À2¡æ |
|
Temperature coefficients of Pm(%) |
-0.52%/K |
|
Temperature coefficients of Im(%) |
0.03%/K |
|
Temperature coefficients of Vm(%) |
-0.37%/K | ,N: left; MARGIN: 0cm 0cm 0pt; mso-pagination: widow-orphan" class=MsoNormal align=left>Both sides Low iron tempered glass with light transmission above 91%, laminated with fast cure EVA |
