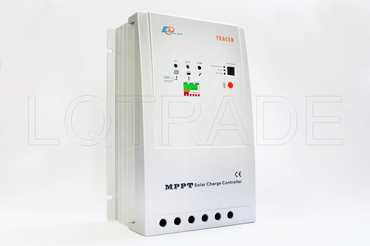

45A Tracer-4215RN MPPT Solar Controller

System Voltage 12 / 24VDC

Rated Battery Current 45A

Rated Load Current 20A

Max. PV Input Power 12V System 585W ; 24V System 1170W

Key features:

MPPT technology

Peak conversion efficiency of 97 %

High Tracking efficiency of  99%

Several seconds tracking speed

Very fast Sweeping of the entire I-V curve

4- Stage charge with PWM output

Excellent thermal design and nature air cooling

Full power output in ambient temperatures up to 45≧

Temperature compensation function

Sealed, Gel, Flooded battery type optional

Diversified load control: Manual, Dusk to Dawn, Dual timer, TEST

RJ45 interface with optional remote meter

Standard 2 years warranty

CE certificate
