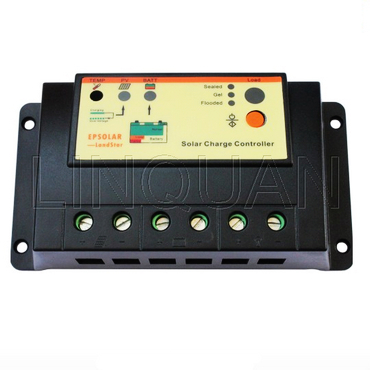

15A 12V 24V LS1524 LandStar Solar Charge Controller Regulators
Solar system controller is specially designed for home
Battery type selection
Load status display
Full electronic protection
1.Solar system controller
2.High efficient Series PWM charging with temperature compensation
3.Compact size.Use MOSFET as electronic switch, without any mechanical switch
5.Digital LED menu, only one key choose the battery type
6.Load status display
7.Gel, Sealed and Flooded battery type option
8.Big terminals and big distance between terminals
9.Electronic protection:Overheating, over charging, over discharging, overload, and short circuit
10.Reverse polarity protection: Any combination of solar module and battery
11.Load work mode:ON/OFF
|
Model |
LS1524 |
|
Rated Current |
15A |
|
System Voltage |
12/24V auto work |
|
Over Load Protection |
1.25 times of rated current for 60 seconds, 1.5 times for 5seconds |
|
Short Circuit Protection |
3.5 times of rated current |
|
Self- consumption |
Max.6mA |
|
Working Temperature |
-35¡ãC to +55¡ãC industrial |
|
Equalize Charging Voltage |
14.6V;x2/24V |
|
Boost Charging Voltage |
14.4V;x2/24V |
|
Float Charging Voltage |
13.8V;x2/24V |
|
Boost Reconnect Charging Voltage |
13.2V;x2/24V |
|
Temperature Compensation |
-30mV/¡ãC/12V |
|
Under Voltage Warning Voltage |
12.0V;x2/24V |
|
Low Voltage Disconnect Voltage |
11.1V;x2/24V |
|
Low Voltage Reconnect Voltage |
12.6V;x2/24V |
|
Terminals |
10 mm2 |
|
Enclosure |
IP30 | |
