4KW Off Grid Solar Home System

4KW off grid  Household Solar PV System--------Model: LQ-HS-4KW -AC
System Configuration
Series No.	Items	Specification	Quantity	G.W.

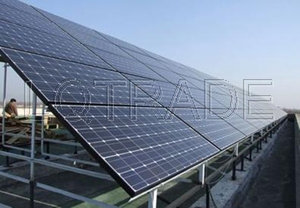

1	Solar Panel 4000Wp	125 W poly solar panel	32 PCS	360 KG
2	Power Box	Controller 24V/ 50A	3 PCS	45 KG
		Pure sine wave inverter24V/2000W	4 PCS
		Controller cabinet	1 PCS
3	Lead Acid Battery	Capacity 24V/1800Ah, not included in quotation and package
4	Accessories	Mounting brackets, cables60m	1 SET	280 KG
Reference for Use(System Capacity: 7246VA)
Name of Load	Power(W)	Quantity	Working Time per Day (H)	Working Days
Color TV	65W	1	6	3  rainy days
Satellite TV Receivers	25W	1	6
LCD Computer	100W	1	4
Energy-saving lamp	11W	6	6
Printer	30W	1	1
Electrograph	150W	1	1
Water Pump	200W	1	1
Refrigeratory	100W	1	10
Washing machine	300W	1	1
Air-condition	1000W	1	4
This system can provide electricity for home 6 hours per day. Peak output power of solar panel is 4000Wp. Capacity of battery: 24V/1800Ah System DC voltage: 24V; Output AC: 110V/220V, 50/60HZ Maximum power of loads: 5000Wp, Above loads can be powered simultaneously.
