500W Off Grid Solar Home System

500W off grid  Household Solar PV System--------Model: LQ-HS-500W -AC
System Configuration
Series No.	Items	Specification	Quantity	Weight

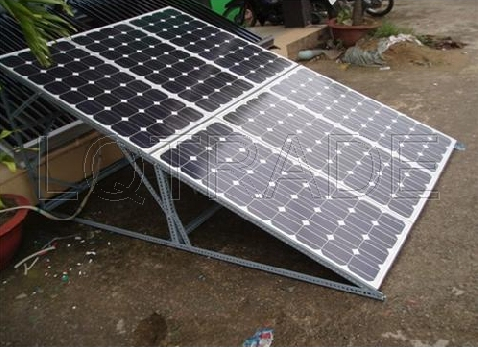

1	Solar Panel 1000Wp	125 W poly solar panel	4 PCS	50 KG
2	Power Box	Controller 24V/ 20A	1 PCS	25 KG
		Pure sine wave inverter24V/2000W	1 PCS
		Controller cabinet	1 PCS
3	Lead Acid Battery	Capacity 24V/200Ah, not included in quotation and package
4	Accessories	Mounting brackets, cables 60m	1 SET	40 KG
Reference for Use(System Capacity: 900VA)
Name of Load	Power(W)	Quantity	Working Time per Day (H)	Working Days
Color TV	65W	1	5	2 rainy days
Computer	40W	1	10
Energy-saving lamp	11W/110V or 220V	3	6
Freezer	50W	1	24
This system can provide electricity for home 6 hours per day. Sunshine duration: 4 hrs per day. Peak output power of solar panel is 500Wp. Capacity of battery: 24V/200Ah System DC voltage: 24V; Output AC: 110V/220V Maximum power of loads: 800Wp

FOB QINGDAO US$ 1500 ~ US$ 1700/SET
