1. Electrical

Description	Parameter
Norminal system voltage	12VDC or 24VDC
Rated battery current	10A
Battery voltage range	9 ¨C 36V
Max. solar input voltage	TRACER-1206 60VDC TRACER-1210 100VDC TRACER-1215 150VDC
Max. PV input power	12V/120W 24V/240W
Self-consumption	¡Ü16mA
RJ45 connection	8pin
Load surge protect	35A

2. Battery Setpoints(Tem: 25¡æ)

Charging Parameter
Battery charging setting	Gel	Sealed	Flooded
High Volt Disconnect	16V; * 2/24V	16V; * 2/24V	16V; * 2/24V
Charging limits voltage	15.5V; * 2/24V	15.5V; * 2/24V	15.5V; * 2/24V
Equalization voltage	¡ª¡ª	14.6V; *2/24V	14.8V; *2/24V
Boost voltage	14.2V; x2/24V	14.4V; x2/24V	14.6V; x2/24V
Float Voltage	13.8V; x2/24V	13.8V; x2/24V	13.8V; x2/24V
Boose return voltage	13.2V; x2/24V	13.2V; x2/24V	13.2V; x2/24V
Low voltage reconnect	12.6V; x2/24V	12.6V; x2/24V	12.6V; x2/24V

3. Threshold Voltage

Description	Parameter
NTTV(Night Time Threshold Voltage )	5V;*2/24V
DTTV(Day Time Threshold Voltage)	6V;*2/24V

4. Battery Charing

Description	Parameter
Temp Compensation coefficient	-5 Mv / Celsuis degree / cell (25 celsius ref)

5. Environmental

Environment	Parameter
Ambient temperature range	- 35 to + 55 celsius
Storage temperature	-35 to+ 80 celsius
Humidity	10% - 90%(NC)
Enclosure	IP30 (Indoor)

6. Mechanical

Dimension	160*97*47mm(6.299*3.818*1.85inches
Mounting holes	150*70mm(5.905*2.755inches)
Weight	0.45kg

Features of product:
1. 12/24V auto recognition, 10A rated charging current.
2. Advanced maximum power point tracking technology to optimize using the solar system.
3. Widely used, automatic recognize day/night.
4. Timer function with 1-15 hours option for street light
5. Two load outputs. Each load can be indivi,,dually controlled, and enhance the flexibility of the system.
6. Sealed, Gel and Flooded battery option.
7. Adopting temperature compensation and correcting the charging and discharging parameters automatically,

improving the battery lifetime.
8. Electronic protection:

Over charging, over discharging, overload, short circuit, and reverse polarity of both solar module(s) and battery.
9. RJ45 interface with remote meter, convenient to check operating parameters of controllers.

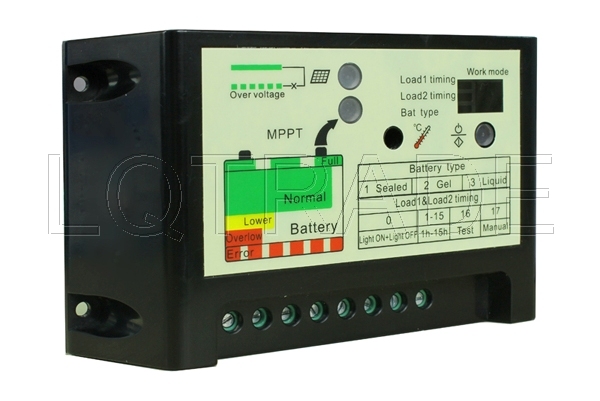

The TRACER series controller is for off-grid solar system and control the charging and discharging of the battery.

The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module and

charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery damage from

battery over discharging.
The TRACER controller charging process has been optimized for long battery life and improved system performance.

The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes

or system faults. In addition, the TRACER controller has a RJ45 interface to allow communication with a meter for remote

monitoring. Although the TRACER controller is very simple to configure and use, please take your time to read the operator¡¯s

manual and become familiar with the controller.

This will help you make full use of all the functions and improve your solar PV system.
