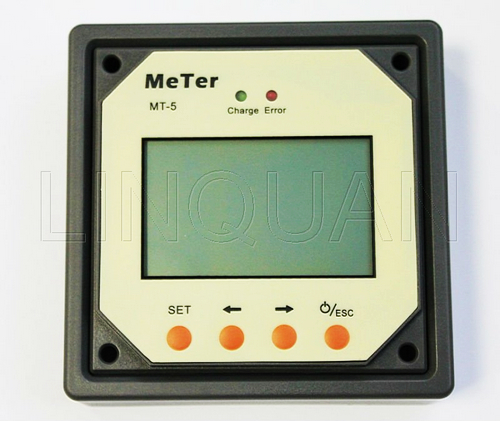

Remote digital display for the MPPT Solar Charge Controller.
Ideal for monitoring and display current solar system status.
Displays both solar voltage and battery voltage as well as charging current and load current.
Shows Amp-Hour and Watt-Hour charge accumulation as well as percentage the batteries are charged.

Easy to use and program and is ideal for a quick system check.
Wall mounting board, can be mounted in or on the wall.

Full Digital Display
Displays Voltage, Current, Amp-Hours, Watt-Hours and Percentage Charge
Suitable for both 12V and 24V Systems
Temperature Display
Easy to Use and Set-Up
Full Installation Instructions Included

SPECIFICATIONS:

Rated voltage:     12V, min voltage(suggest): 8.0V.
Strong backlight on:         <23mA,
Low backlight on:           <20mA
Backlight and LED indicator off: <17mA
Operation temperature: -40C ~ +60C
LCD operation temperature: -10C ~ +40C
Humidity:                 0-100%
Communication cable:       RJ45(8PIN)
