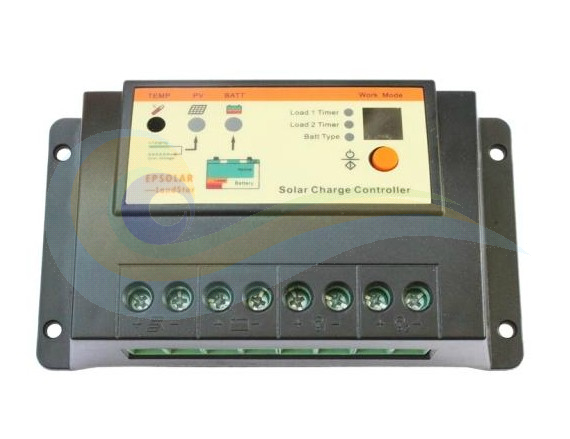

Dual Loads Solar Charger Controller Regulator
Model: LS1024RD/LS1524RD/LS2024RD
Light and timer control
Dual Load output
Ideal for the solar lighting system with two lamps
that needs different timer setting
Current:: 10A/15A/20A
Voltage:12/24V auto work
Features:
¡¤12/24V automatic recognition
¡¤High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance.
¡¤Use MOSFET as electronic switch, without any mechanical switch
¡¤Widely used, automatically recognize day/night.
¡¤Digital LED menu, only one key solve all setting simply
¡¤Intelligent timer function with 1-15 hours option
¡¤Dual load output, enhance the flexibility of the system.
¡¤Gel, Sealed and Flooded battery type option.
¡¤Adopt temperature compensation, correct the charging and discharging parameters automatically and improve the battery lifetime.
¡¤Electronic protection: Overheating, over charging, over discharging, overload, and short circuit.
¡¤Reverse protection: any combination of solar module and battery.

Technical specifications
Electrical Parameters
Description	Parameter
Nominal System Voltage	12 / 24VDC Auto work
Battery Voltage Range	6-36V
Rated Battery Current	LS1024RD  10A
	LS1524RD 15A
	LS2024RD  20A
Charge Circuit Voltage Drop	¡Ü0.26V
Discharge Circuit Voltage Drop	¡Ü0.15V
Self-consumption	¡Ü6mA
Temperature Compensation Coefficient
Description	Parameter
Temperature Compensation Coefficient(TEMPCO)*	-30mV/¡æ/12V£¨25¡æ ref£©
* Compensation of equalize, boost, float and boost reconnect voltage
Battery Voltage Parameters (temperature at 25¡æ)
Charging  Parameters
Battery charging setting	Gel
Over Voltage Disconnect Voltage	16V; x2/24V
Charging Limit Voltage	15.5V;x2/24V
Equalize Charging Voltage	-----
Boost Charging Voltage	14.2V;x2/24V
Float Charging Voltage	13.8V;x2/24V
Boost Reconnect Charging Voltage	13.2V;x2/24V
Low Voltage Reconnect Voltage	12.6V;x2/24V
Under voltage warning reconnect voltage	12.2V;x2/24V
Under Voltage Warning Voltage	12V; x2/24V
Low Voltage Disconnect Voltage	11.1V;x2/24V
Discharging Limit Voltage	10.8V;x2/24V
Equalize duration	-----
Boost duration	2 hours
Environmental parameters
Environmental  parameters	Parameter
Working temperature	-35¡æ to +55¡æ
Storage temperature	-35¡æto +80¡æ
Humidity	10%-90% NC
Enclosure	IP30
LS1024RD Mechanical parameters
Overall dimension	140(5.51)x65(2.56)x34(1.34) mm/inches
Mounting dimension	130(5.12) x 45(1.77) mm/inches
Mounting hole size	¦µ4.5
Terminal	6mm2
Net weight	0.15kg
LS1524RD & LS2024RD Mechanical Parameters
Overall dimension	143.4(5.64)x79(3.11)x45(1.77) mm/inches
Mounting dimension	134(5.27)x55(2.16) mm/inches
Mounting hole size	¦µ4.5
Terminal	10mm2
Net weight	0.3kg
