Solar regulator for street light
Dual load function
Waterproof IP67
Battery type selection

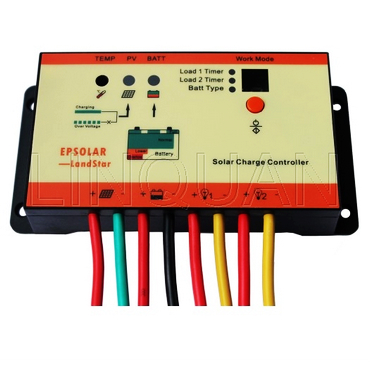

Solar charge controller
1. Intelligent System Optimum Controller
2.High efficient Series PWM charging with temperature compensation
3.Compact size
4.Use MOSFET as electronic switch, without any mechanical switchDigital LED menu, only one key solve all setting simple
5.Widely used, automatically recognize day/night
6.Intelligent timer function with 1-15 hours option
7.Dual load output, enhance the flexibility of the system
8.Waterproof design, suitable for the extreme environment with corrosion, dust, water etc.
9.Gel,Sealed and Flooded battery type option
10.Load status display
11.Big terminals and big distance between terminals
12.Electronic protection:Overheating, over charging, over discharging, overload, and short circuit
13.Reverse polarity protection : Any combination of solar module and battery
14.Load work mode: Light ON+timer, Dusk to Dawn, Test, ON/OFF

Model	LS1524RPD
Rated  Current	15A
System Voltage	12/24V auto work
Over Load Protection	1.25 times of rated current for 60 seconds, or 1.5 times for 5 seconds
Short Circuit Protection	3.5 times of rated current
Self- consumption	Max.6mA
Working Temperature	-35¡ãC to +55¡ãC industrial
Equalize Charging Voltage	14.6V;x2/24V
Boost Charging Voltage	14.4V;x2/24V
Float Charging Voltage	13.8V;x2/24V
Boost Reconnect Charging Voltage	13.2V;x2/24V
Temperature Compensation	-30mV/¡ãC/12V
Under Voltage Warning Voltage	12.0V;x2/24V
Low Voltage Disconnect Voltage	11.1V;x2/24V
Low Voltage Reconnect Voltage	12.6V;x2/24V
Terminals	10 mm2
Enclosure	IP67
