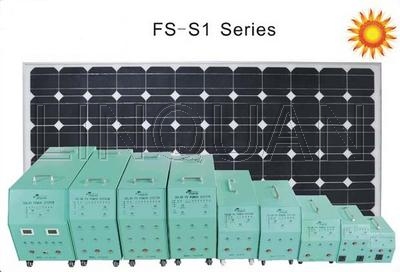

FS-S1 series off grid solar power system

100W:FS-S103/FS-S103A FS-S104/FS-S104A

300W:FS-S105/FS-S105A FS-S106/FS-S106A

500W/600W:FS-S107/FS-S107A FS-S108/FS-S108A FS-S109/FS-S109A

1000W/1200W:FS-S110/FS-S110A FS-S111/FS-S111A

1).The characteristics and advantages of S1 series AC+DC system

1. Normal home used AC+DC solar system.

2. Battery capacity can be extended from battery extending terminal outside (must be the same capacity battery)

3. For some models, the AC output of 110V/220V together with the frequency (50Hz and 60Hz). And the input power (12V/24V) can be switched on the inverter module.

4. With Pure sine wave inverter inside.

2).Specification:

Model	Solar panel	battery	controller	Led lamp	Output voltage
FS-S103	25W(18V)	12V12AH	12V3A	3W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S103A	25W(18V)	12V18AH	12V3A	3W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S104	35W(18V)	12V18AH	12V3A	3W*5Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S104A	35W(18V)	12V24AH	12V10A	3W*5Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S105	45W(18V)	12V24AH	12V10A	3W*8Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S105A	45W(18V)	12V24AH	12V10A	3W*8Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S106	70W(18V)	12V38AH	12V10A	3W*8Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S106A	70W(18V)	12V38AH	12V10A	5W1/3W1/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S107	120W(18V)	12V65AH	12V10A	5W2/3W1/1W*1Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S107A	120W(18V)	12V65AH	12V10A	5W2/3W1/1W*1Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S108	100W*2(18V)	12V100AH	12V20A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S108A	100W*2(18V)	12V100AH	12V20A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S109	120W*2(18V)	12V120AH	12V20A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S109A	120W*2(18V)	12V120AH	12V20A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S110	135W*2(18V)	12V150AH	12V20A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S110A	135W*2(18V)	12V150AH	12V20A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S111	180W*2(18V)	12V200AH	12V50A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V
FS-S111A	180W*2(18V)	12V200AH	12V50A	5W2/3W2/1W*2Pcs	220V/12V/ 8.4V/5V/3.3V

(A means with AC charging input）

3)Size& weight of solar system case& solar panel

Model

System Case

Solar Panel

Length

Width

Height

Weight

Length

Width

Height

Weight

FS-S103

219

160

205

6.24

610

350

25

2.56

FS-S103A

219

160

205

6.74

610

350

25

2.56

FS-S104

255

159

250

8.8

600

516

25

3.52

FS-S104A

255

159

250

9.3

600

516

25

3.52

FS-S105

335

225

290

13.7

730

520

25

4.24

FS-S105A

335

225

290

14.2

730

520

25

4.24

FS-S106

382

227

370

20.1

1100

515

30

6.4

FS-S106A

382

227

370

20.6

1100

515

30

6.4

FS-S107

504

227

375

30.3

1470

670

35

11.3

FS-S107A

504

227

375

30.8

1470

670

35

11.3

FS-S108

510

260

490

46.5

1140

670

35

8.98*2

FS-S108A

510

260

490

47

1140

670

35

8.98*2

FS-S109

570

260

490

52.4

1470

675

35

11.3*2

FS-S109A

570

260

490

52.9

1470

675

35

11.3*2

FS-S110

633

260

490

63.4

1470

675

35

11.3*2

FS-S110A

633

260

490

63.9

1470

675

35

11.3*2

FS-S111

704

327

485

89

1580

810

45

14.98*2

FS-S111A

704

327

485

89.5

1580

810

45

14.98*2

4)Size & weight of packing

Model

Case packing

Panel packing

length

width

height

Weight(kg)

length

width

height

Weight(kg)

FS-S103

310

230

305

6.96

630

370

35

2.944

FS-S103A

310

230

305

7.46

630

370

35

2.944

FS-S104

340

230

365

9.62

620

536

35

4.048

FS-S104A

340

230

365

10.12

620

536

35

4.048

FS-S105

445

313

375

14.9

750

540

35

4.876

FS-S105A

445

313

375

15.4

750

540

35

4.876

FS-S106

505

325

465

21.6

1130

565

60

7.68

FS-S106A

505

325

465

22.1

1130

545

50

7.68

FS-S107

629

338

455

32.18

1500

700

55

13.56

FS-S107A

629

338

455

32.68

1500

700

55

13.56

FS-S108

710

395

590

50.52

1170

700

55

10.78

FS-S108A

710

395

590

51.02

1170

700

55

10.78

FS-S109

760

395

590

56.48

1500

700

55

13.56

FS-S109A

760

395

590

56.98

1500

705

55

13.56

FS-S110

830

395

590

67.56

1500

705

55

13.56

FS-S110A

830

395

590

68.06

1500

705

55

13.56

FS-S111

880

495

215

95.84

1610

840

65

17.98

FS-S111A

880

495

215

96.34

1610

840

65

17.98

5) Product sketch map: (FS-S103)

1.Solar panel

2.Check button for battery’s power

3.Indicator for battery’s power

4.Indicator for inverter’s working

5.Indicator for inverter’s not working

6.Indicator for solar charging（red for charging，green for full.）

7.Indicator for battery（green for not empty, red for empty）

8.Indicator for 12V load（shine for working，not shine for not working）

9.Indicator for 8.4V load（shine for working，not shine for not working）

10.Indicator t for 5V load（shine for working，not shine for not working）

11.Indicator t for 3.3V load（shine for working，not shine for not working）

12.USB interface for 8.4V/5V/3.3V(adjustable)

13.DC 8.4V/5V/3.3V select output button

14.DC 12V output switch

15.AC 220V output switch

16.DC 12V output terminal

17.AC 220V output terminal

18.8.4V/5V/3.3V output switch

19.Solar input terminal

20.Master switch

21.System box
