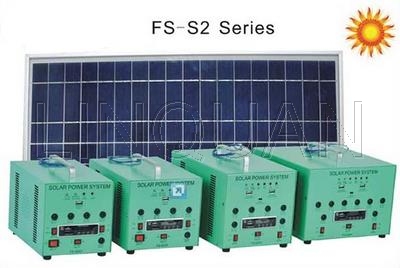

FS-S2 series off grid solar power system
Model : FS-S201/202/203/204
1) The characteristic and advantage of S2 series:
1. The output of FS-S201/202 are 5V&12V, S203/204 are 3.3V&5V&8.4V& (3.3V can charge radio, 5V can charge mobile phone ,8.4V can charge digital camera,12V can charge LED lamp and DC TV,DC fans.
2. With 3.5W FM&MP3 player.(MP3 needs to insert USB flask disk or memory card)
3. With remote control for FM&MP3 player, convenient for operating
4. Vertical designed operating board
2) Specification:
|
Model |
Solar panel |
Battery |
Controller |
Led lamp |
Output voltage |
|
FS-S201 |
9V4W |
6V4AH |
6V3A |
1W*2Pcs |
6V/5V |
|
FS-S202 |
18V8W |
12V4.5AH |
12V3A |
3W*2Pcs |
12V/5V |
|
FS-S203 |
18V15W |
12V7AH |
12V3A |
3W*4Pcs |
12V/5V |
|
FS-S204 |
18V25W |
12V12AH |
12V3A |
3W*4Pcs |
12V/5V |
3) Solar charging time
|
Model |
FS-S201 |
FS-S202 |
FS-S203 |
FS-S204 |
|
Charging time(h) |
6.5-7.5 |
6.5-7.5 |
7-9 |
7-9 |
4) MP3/FM’s playing time (P=12V3.5W)
|
Model |
FS-S201 |
FS-S202 |
FS-S203 |
FS-S204 |
|
Playing time(h) |
18-21 |
31-33 |
58-61 |
73-76 |
5) Lighting time (according standard allocation of led lamps)
|
Model |
FS-S201 |
FS-S202 |
FS-S203 |
FS-S204 |
|
Lighting time(h) |
7-8 |
12-13 |
13-14 |
14-15 |
6) FAN’s using time (adopt 7.5 inch DC12V15Wfan)
TV’s using time (adopt DC12V6W TV)
|
Model |
FS-S201 |
FS-S202 |
FS-S203 |
FS-S204 |
|
Fan’s using time(h) |
4-5 |
7-8 |
13-14 |
17-18 |
|
TV’s using time(h) |
10-11 |
18-19 |
33-34 |
43-44 |
7) Size& weight of solar system case& solar panel
|
Model |
System case |
Solar panel |
|
Size (mm) |
Weight(kg) |
Size (mm) |
Weight(kg) |
|
length |
width |
height |
length |
width |
height |
|
FS-S201 |
230 |
145 |
150 |
4.34 |
395 |
350 |
25 |
1.68 |
|
FS-S202 |
230 |
165 |
150 |
6.06 |
610 |
350 |
25 |
2.56 |
|
FS-S203 |
263 |
170 |
170 |
10.42 |
655 |
516 |
25 |
3.94 |
|
FS-S204 |
252 |
235 |
170 |
12.86 |
845 |
515 |
30 |
5 |
8) Size& weight of packing
|
Model |
Case packing |
Panel packing |
|
length |
width |
height |
Weight(kg) |
length |
width |
height |
Weight(kg) |
|
FS-S201 |
310 |
250 |
255 |
4.9 |
415 |
370 |
35 |
1.932 |
|
FS-S202 |
310 |
268 |
255 |
6.64 |
630 |
370 |
35 |
2.944 |
|
FS-S203 |
370 |
265 |
355 |
11.18 |
695 |
536 |
35 |
4.531 |
|
FS-S204 |
355 |
330 |
365 |
13.88 |
865 |
535 |
40 |
5.75 |
9) Product sketch map:
1)Solar panel
2)Solar charge indicator.(red means charging; green means charge finished)
3)Battery power indicator.(green means with power; red means without power)
4)12V output indicator(red for working)
5)5V output indicator(red for working)
6)USB 5V output interface
7)DC 12V output interface
8)DC 5V output switch
9)Solar power input interface
10)FM/MP3 player
11)FM/MP3 switch
12)Master switch,(switch on before charging or use）
13)12V output switch
14)Radio antenna
15)System case |
