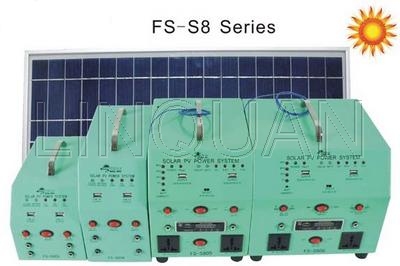

FS-S88 series off grid solar power system
Model : S801,S803,S804,S805,S806,S810
1)The characteristic and advantages ：
FS-S803/S804:
1. With 5V&/12V&19V DC output,(5V can charge mobile phone and 5V small DC fan,12V output can charge led lamp, DC TV/Fan, 19V output can charge notebook computer.
2. Slop design operating board, convenient for operation.
3. Suitable for army’s outdoor activities.
FS-S805/S806:
1. AC+DC output with MP3/FM player
2. DC output is 3.3V&5V&8.4V+12V,AC output is 110V/120V220V/240V(only select one with the system)
3. Adopt lead-crystal battery. with longer using life and more environmental friendly
4. With remote control for FM&MP3 player.
2)Specification:
|
Model |
Solar panel |
Battery |
Controller |
Inverter |
Led lamp |
Output voltage |
|
FS-S803 |
25W(18V) |
12V12AH |
12V3A |
/ |
3W*2Pcs |
19V/5V/12V |
|
FS-S804 |
35W(18V) |
12V18AH |
12V3A |
/ |
5W*2Pcs |
19V/5V/12V |
|
FS-S805 |
40W(19V) |
12V22AH |
12V10A |
300W |
3W*4Pcs |
220V/12V/ 8.5V/5V/3.3V |
|
FS-S806 |
50W(20V) |
12V28AH |
12V10A |
300W |
5W*2/3W*2Pcs |
220V/12V/ 8.5V/5V/3.3V |
3) Solar charging time / 21inch ACTV’s working time (h) / Lighting time（according to standard allocation of led lamps) / Fan’s using time (adopt DC12V15W fan) / 15.6 inch TV’s using time (adopt DC12V15W TV)
|
Model |
FS-S803 |
FS-S804 |
FS-S805 |
FS-S806 |
|
Charging time(h) |
6.5-7.5 |
7-9 |
7-9 |
7-9 |
|
Working time(h) |
8.5-9.5 |
13-14 |
3-4 |
5-6 |
|
Lighting time(h) |
18-19 |
16-17 |
16-17 |
16-17 |
|
Fan’s using time (h) |
22-23 |
33-34 |
13-14 |
17-18 |
|
TV's using time(h) |
18-19 |
27-28 |
13-14 |
17-18 |
4) Size& weight of solar system case& solar panel
|
Model |
System case |
Solar panel |
|
Size (mm) |
Weight(kg) |
Size (mm) |
Weight(kg) |
|
Length |
Width |
Height |
length |
Width |
Height |
|
FS-S803 |
220 |
130 |
145 |
4.76 |
610 |
350 |
25 |
2.56 |
|
FS-S804 |
250 |
120 |
200 |
7.24 |
600 |
516 |
25 |
3.52 |
|
FS-S805 |
240 |
180 |
230 |
11.26 |
655 |
516 |
25 |
3.94 |
|
FS-S806 |
240 |
240 |
230 |
12.92 |
845 |
515 |
30 |
5 |
5) Size& weight of packing
|
Model |
Case packing |
Panel packing |
|
Size (mm) |
Weight(kg) |
Size (mm) |
Weight(kg) |
|
Length |
Width |
Height |
Length |
Width |
Height |
|
FS-S803 |
280 |
180 |
280 |
4.76 |
630 |
370 |
35 |
2.944 |
|
FS-S804 |
340 |
198 |
382 |
7.24 |
620 |
536 |
35 |
4.048 |
|
FS-S805 |
325 |
250 |
335 |
11.3 |
675 |
536 |
35 |
4.531 |
|
FS-S806 |
385 |
335 |
345 |
12.9 |
865 |
535 |
40 |
5.75 |
1)solar panel indicator (red means charging; green means charge finished).
2) Battery Charge indicator. (red means charging; green means charge finished)
3) 12V output indicator (red for working)
4) 19V output indicator (red for working)
5) 5V output indicator (red for working)
6) USB output interface.
7) 12V output. Switch
8) USB output. Switc
9) DC 12V output interface
10) DC 19V output interface (Charging for notebook)
11) 19V output. Switch
12) solar panel DC Input interface for
13) master Switch (Charge and use of this switch must be opened before)
14) System box
15) Solar panel |
