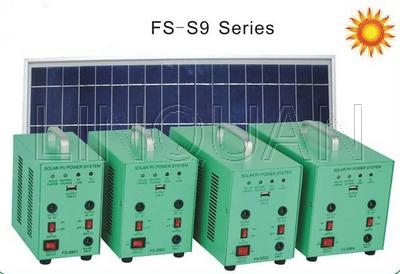

FS-S9 series off grid solar power system
Model : S901，S902，S903,S904
1)The characteristic and advantage of S9 series
1. Economic DC series, with output of 5V&12V (FS-S901 is 5V&6V),5V can charge mobile phones,12V can charge
LED lamps & DC TV/Fans.
2. Max current output: USB=1.5A (FS-S901 is 500MA), 12VDC=3A
3. Vertical designed operating board
4. Professional designed with thorough indicators and switches, convenient to use and maintain
2)Specification:
|
Model |
Solar panel |
Battery |
Controller |
Led lamp |
Output voltage |
|
FS-S901 |
9V4W |
6V4AH |
6V3A |
1W*2Pcs |
6V&5V |
|
FS-S902 |
18V8W |
12V4.5AH |
12V3A |
3W*2Pcs |
12V&5V |
|
FS-S903 |
18V15W |
12V7AH |
12V3A |
3W*4Pcs |
12V&5V |
|
FS-S904 |
18V25W |
12V12AH |
12V3A |
3W*4Pcs |
12V&5V |
3)Solar charging time(fully charged):
|
Model |
FS-S901 |
FS-S902 |
FS-S903 |
FS-S904 |
|
Charging time(h) |
6.5-8.5 |
7-9 |
5.5-7.5 |
6-8 |
4)Lamp’s lighting time (according to standard allocation of lamps)
|
Model |
FS-S901 |
FS-S902 |
FS-S903 |
FS-S904 |
|
Lighting time(h) |
9-10 |
7-8 |
5-6 |
9-10 |
5)Fan’s using time (adopt DC12V5W)/TV’s using time (adopt 7.6” ,DC12V6W)/
NO. Of mobile phones can be fully charged:
|
Model |
FS-S901 |
FS-S902 |
FS-S903 |
FS-S904 |
|
Fan’s using time(h) |
4-5 |
8-9 |
12-13 |
22-23 |
|
TV's using time(h) |
3-4 |
7-8 |
10-11 |
18-19 |
|
Mobile charge |
4-5 |
11-12 |
17-18 |
30-31 |
6)Size&weight of solar system case& solar panel
|
Model |
System case |
Solar panel |
|
Length |
Width |
Height |
Weight (kg) |
Length |
Width |
Height |
Weight (kg |
|
FS-S901 |
148 |
90 |
163 |
1.48 |
180 |
220 |
17 |
0.64 |
|
FS-S902 |
168 |
110 |
172 |
2.58 |
265 |
292 |
17 |
0.96 |
|
FS-S903 |
229 |
110 |
163 |
3.76 |
350 |
395 |
25 |
1.7 |
|
FS-S904 |
229 |
130 |
172 |
5.24 |
350 |
610 |
25 |
2.56 |
5)Size&weight of packing
|
Model |
System case |
Solar panel |
|
Length |
Width |
Height |
Weight (kg) |
Length |
Width |
Height |
Weight (kg |
|
FS-S901 |
195 |
143 |
238 |
1.74 |
200 |
190 |
18 |
0.506 |
|
FS-S902 |
215 |
160 |
242 |
2.96 |
285 |
310 |
18 |
1.104 |
|
FS-S903 |
275 |
160 |
242 |
3.72 |
415 |
370 |
35 |
1.955 |
|
FS-S904 |
275 |
180 |
242 |
5.62 |
630 |
370 |
35 |
2.944 |
6)Product sketch map
1.Solar panels
2.Solar charging indicator (red for charging, green for finish.
3.Battery indicator (green is with power, red is out of power)
4.DC6V/12V output indicator(red for working)
5.DC5V output indicator(red for working)
6.DC5V output interface
7.DC6V/12V output interface
8.DC6V/12V output switch
9.Solar input
10.Master switch (must be switched on before charge/use)
11.USB5V output switch
12.System case |
